SQLGeography in SQL Server 2012 – Polygon must start on correct position? No!

Daniel WertheimDaniel Wertheim

This is a follow up on my post that I wrote this weekend: “SQLGeography in SQL Server 2012 – Polygon must start on correct position?“, you probably want to go and skim it through and then come back. But basically after my first tests I got the feeling that the starting position was the issue, but it turns out it’s not. It’s the “left hand rule”. Let my try and explain with two pictures.

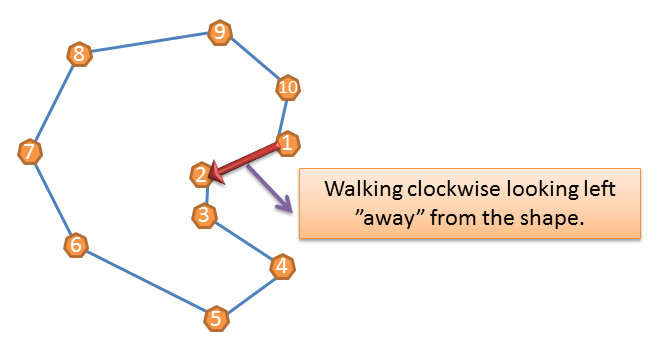

sqlgeography-polygon-clockwise

If you draw the polygon walking “clockwise” and imagine your self looking to the left. Then you are looking away from the shape being constructed, hence we will get the area outside of the shape.

If you instead walk counter-clockwise, you will be looking into the shape, hence we will get the polygon we desired. At least for my use-case.

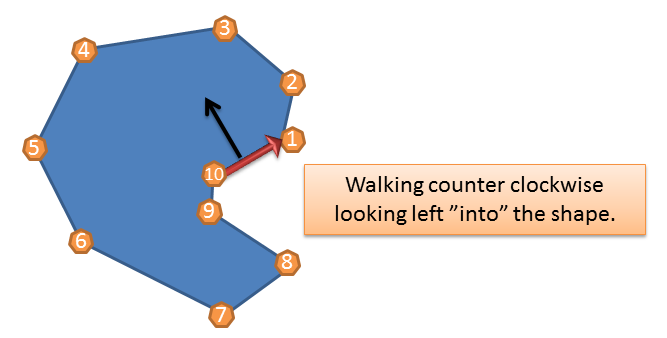

sqlgeography-polygon-counter-clockwise

Sorry,

//Daniel
